MAGIO MS-900F Refrigerated / heating circulator SKU: 6720-00205
Description
High resolution TFT touch display
The modern TFT touch display gives you all the important information at a glance. Three large, predefined main screens clearly display data and graphics with various application priorities. Menu navigation is self-explanatory, arranged by relevance to daily operations and easy to operate with the touch of a finger. The in-built help function provides detailed support in case of additional questions.
Performance data depends on the mains voltage in the country of use.
Please select:
Country of use | Mains voltage | Plug | JULABO voltage version code
| Order No. | 9032706.02 | |||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working temperature range | -38 … +200 °C | |||||||||||||||||||||||||
| Temperature stability | ±0.01 °C | |||||||||||||||||||||||||
| Heating capacity | 1 kW | |||||||||||||||||||||||||

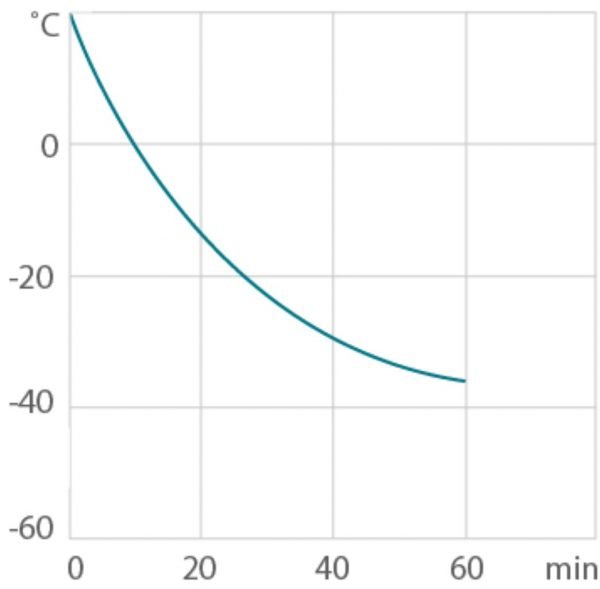

Cooling capacity
* Performance specifications measured in accordance with DIN12876. Cooling capacities up to 20 °C measured with ethanol; over 20 °C with thermal oil unless otherwise specified. Performance specifications apply at an ambient temperature of 20 °C. Performance values may differ with other bath fluids.
|
||||||||||||||||||||||||||
| Pump capacity flow rate | 16 … 31 l/min | |||||||||||||||||||||||||
| Pump capacity flow pressure | 3.5 … 13.3 psi | |||||||||||||||||||||||||
| Usable bath opening (W x L / D) |
10.2 x 13.8 / 7.9 in. | |||||||||||||||||||||||||
| Filling volume | 21 … 30 l | |||||||||||||||||||||||||
| Dimensions (W × L × H) |
15.4 x 24.4 x 29.5 in. | |||||||||||||||||||||||||
Product Features
- Ideal for demanding external applications
- Simple control of complex applications
- Continuously adjustable, extremely powerful pressure / suction pump
- Flow rate 16 … 31 l / min, pressure 0.24 … 0.92 bar, suction 0.03 … 0.4 bar
- Large, high-resolution TFT touch display with multilingual user interface
- Parts being in contact with the medium made of stainless steel
- Integrated programmer
- Integrated external Pt100 connection
- USB connection
- RS232 interface for online communication
- Ethernet
- analog interfaces (accessory)
- Class III (FL) according to DIN 12876-1
- Modbus
- Profibus DP (Accessory)
- RS232/RS485 interface for online communication
- Connections for solenoid valve
