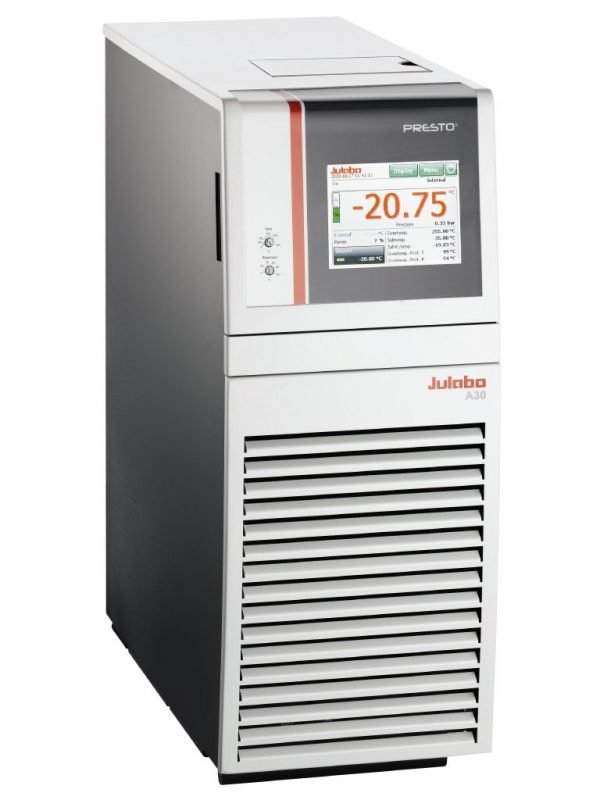

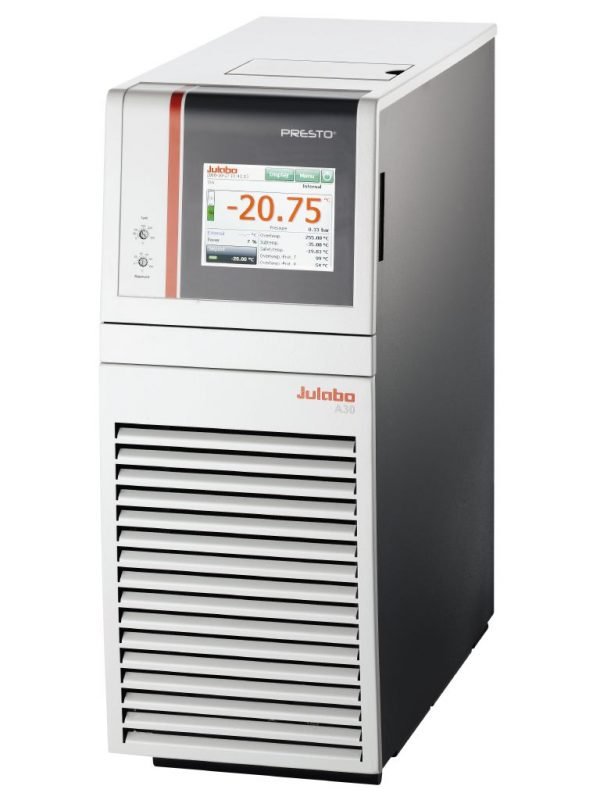

PRESTO A30 Process system SKU: 6720-00209
Compact process system down to -40 °C
The A30, A40 and W40 process system combine high performance and a very compact design with the advantages of the PRESTO series for a working temperature range down to -40 °C.
Description
Performance data depends on the mains voltage in the country of use.
Please select:
Country of use | Mains voltage | Plug | JULABO voltage version code
| Order No. | 9420300.14 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working temperature range | -30 … +250 °C | |||||||||||||||||||||||
| Temperature stability | ±0.01 … ±0.05 °C | |||||||||||||||||||||||
| Heating capacity | 2.3 kW | |||||||||||||||||||||||
Cooling capacity
* Performance specifications measured in accordance with DIN12876. Cooling capacities up to 20 °C measured with ethanol; over 20 °C with thermal oil unless otherwise specified. Performance specifications apply at an ambient temperature of 20 °C. Performance values may differ with other bath fluids.
|
||||||||||||||||||||||||

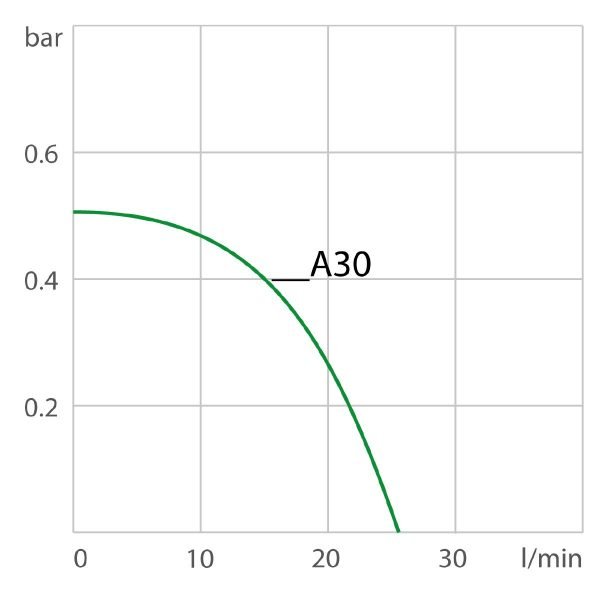

| Pump capacity flow rate | 15 l/min | |||||||||||||||||||||||
| Pump capacity flow pressure | 7.3 psi | |||||||||||||||||||||||
| Dimensions (W × L × H) |
9.8 x 23.2 x 24.4 in. | |||||||||||||||||||||||
Product Features
- Highest performance with small footprint
- Space-saving design optimizes space utilization in your lab
- Rapid heating and cooling
- For highly precise, external temperature applications
- Wide working temperature ranges without changing fluids
- Heating capacity up to 2.7 kW
- Cooling capacity up to 1.2 kW
- Temperature stability ±0.01 °C … ±0.05 °C
- Pump pressure up to 1.7 bar, max. flow rate 40 l/min
- Built-in 5.7’’ industrial color touchscreen
- SD-Card slot
- RS232
- USB connection
- Modbus
- RS485 (Accessory)
- Profibus DP (Accessory)
- Second external Pt100 sensor connection for A40 and W40 (accessory)
- Alarm output
