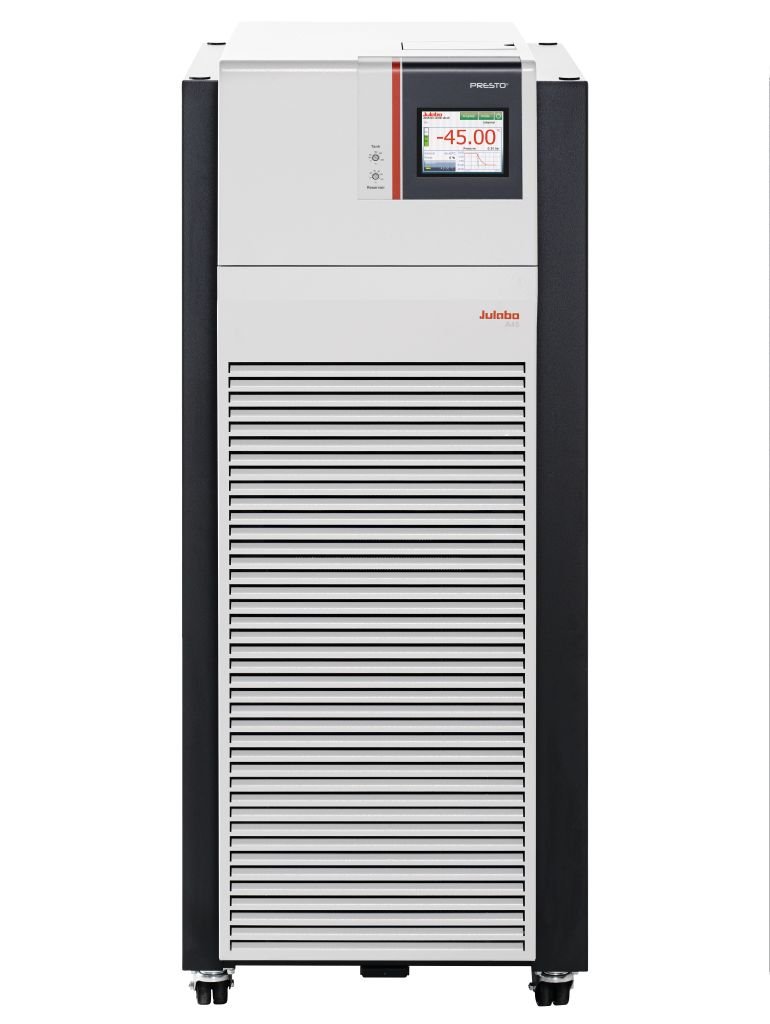

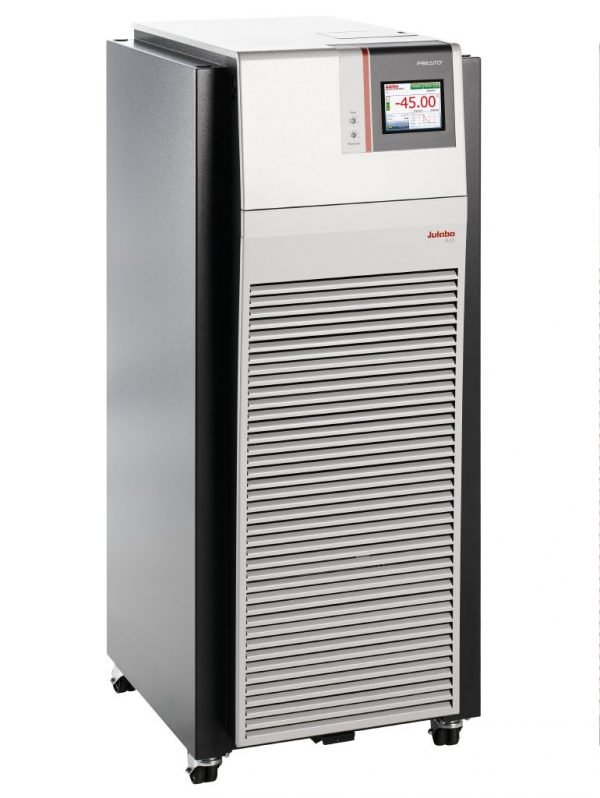

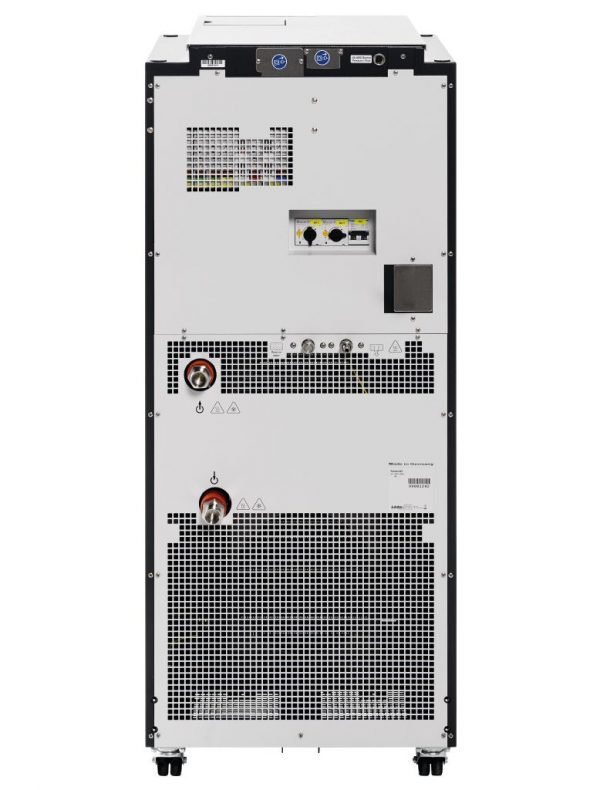

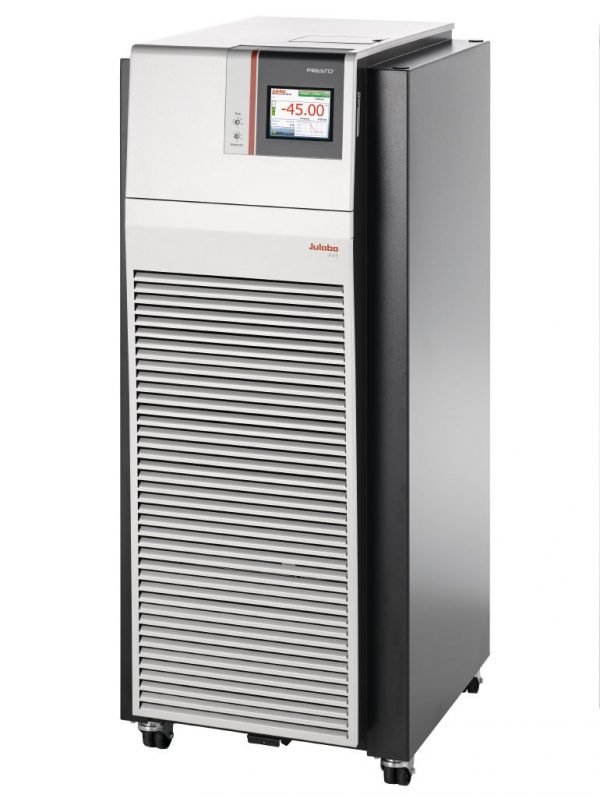

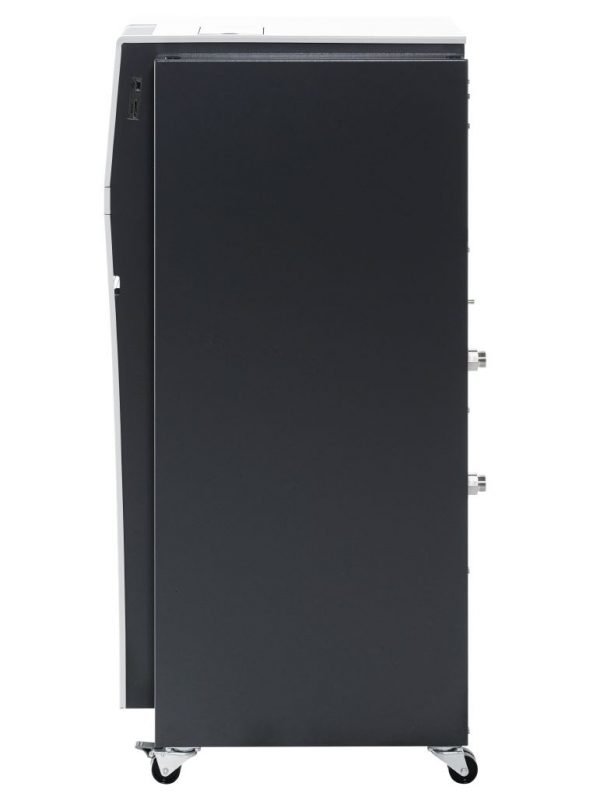

PRESTO A45 Process system SKU: 6720-00213

SKU: 6720-00213 Category:

Description

Performance data depends on the mains voltage in the country of use.

Please select:

Country of use | Mains voltage | Plug | JULABO voltage version code
A45
Order No. 9420452.16
Working temperature range -45 … +250 °C
Temperature stability ±0.05 … ±0.1 °C

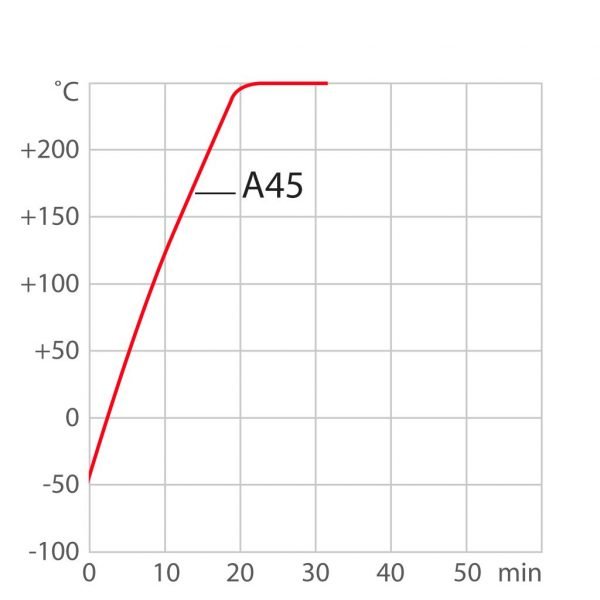

Heating capacity 5.5 kW

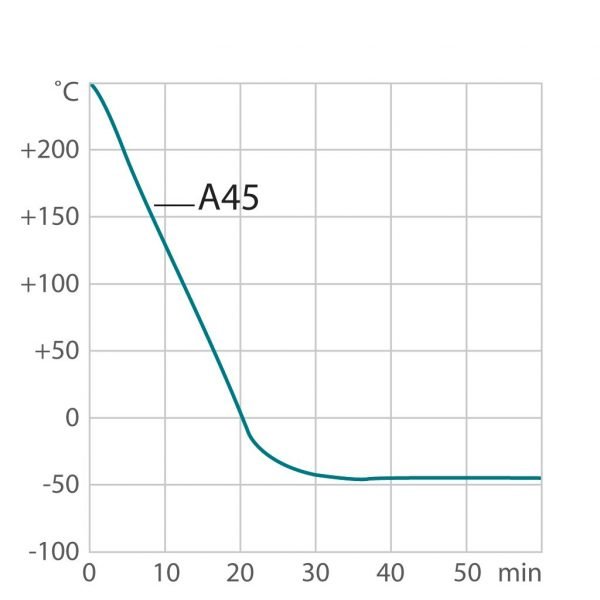

Cooling capacity

Medium: Ethanol
°C 200 20 0 -10 -20 -30 -40
kW* 3.4 3.5 3.1 2.5 1.8 0.7 0.2
Refrigerant R449A
Global Warming Potential 1397
Filling volume 1050 g
Carbon dioxide equivalent 1.467 t
Performance specifications measured in accordance with DIN12876. Cooling capacities up to 20 °C measured with ethanol; over 20 °C with thermal oil unless otherwise specified. Performance specifications apply at an ambient temperature of 20 °C. Performance values may differ with other bath fluids.

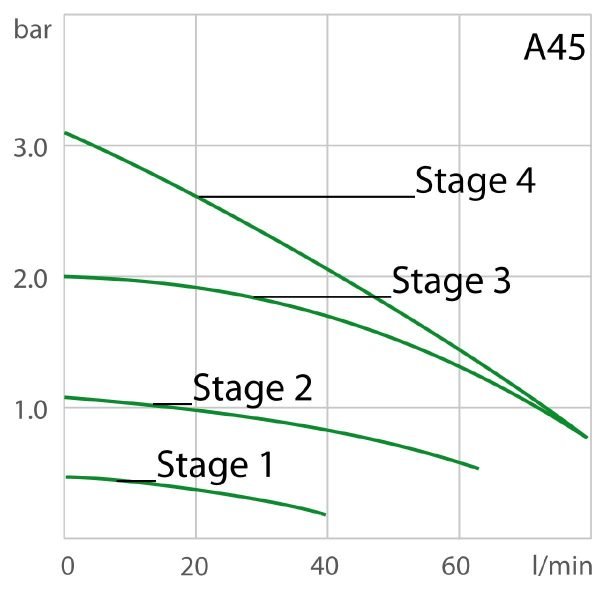

Pump capacity flow rate 35 … 76 l/min
Pump capacity flow pressure 7 … 43.5 psi
Dimensions
(W × L × H)
20.9 x 26.2 x 49.6 in.
ARRANGE CALLBACK

Product Features

  • For highly precise, external temperature applications
  • Rapid heating and cooling
  • Wide working temperature ranges without changing fluids
  • Highest performance with small footprint
  • Space-saving design optimizes space utilization in your lab
  • Heating capacity up to 12 kW
  • Cooling capacity up to 3.5 kW
  • 5,7” industrial color TFT touch screen
  • Ports for USB, Ethernet, RS232, Modbus
  • SD-Card slot
  • Analog connections, RS485, Profibus DP (accessory)
