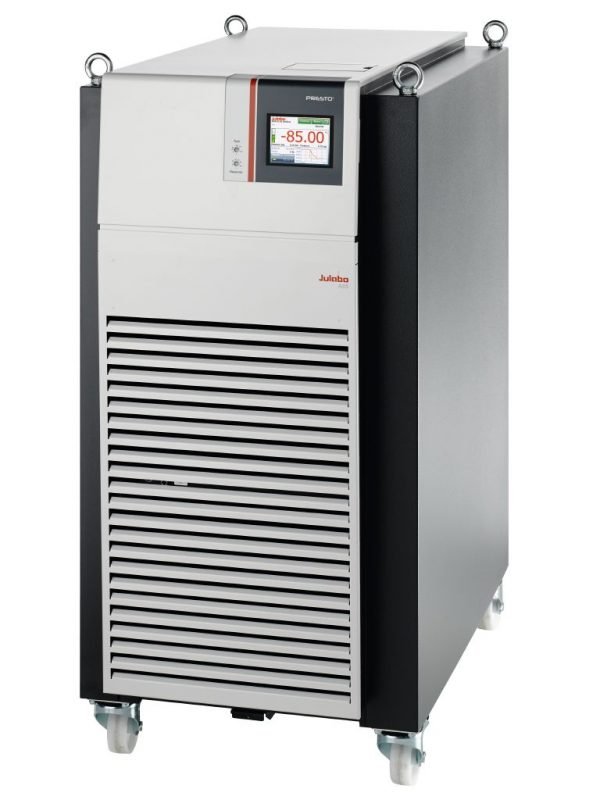

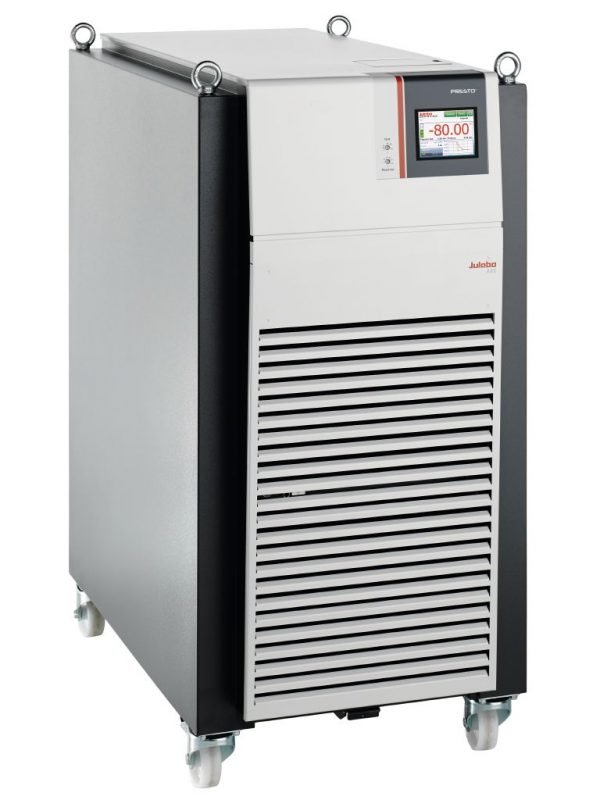

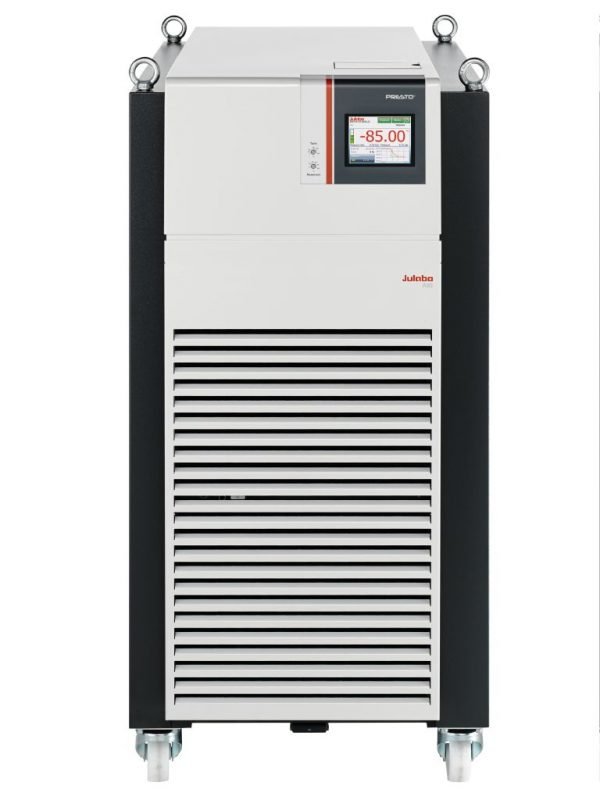

PRESTO A85T Process system SKU:6720-00223
Description
Performance data depends on the mains voltage in the country of use.
Please select:
Country of use | Mains voltage | Plug | JULABO voltage version code
| Order No. | 9420852.16.T | ||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working temperature range | -85 … +250 °C | ||||||||||||||||||||||||||||||||||||
| Temperature stability | ±0.05 … ±0.1 °C | ||||||||||||||||||||||||||||||||||||
| Heating capacity | 12.5 kW | ||||||||||||||||||||||||||||||||||||

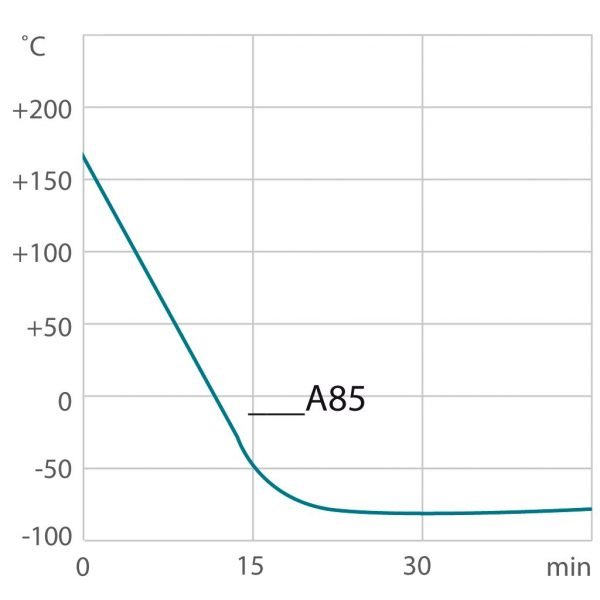

Cooling capacity
* Performance specifications measured in accordance with DIN12876. Cooling capacities up to 20 °C measured with ethanol; over 20 °C with thermal oil unless otherwise specified. Performance specifications apply at an ambient temperature of 20 °C. Performance values may differ with other bath fluids.
|
|||||||||||||||||||||||||||||||||||||

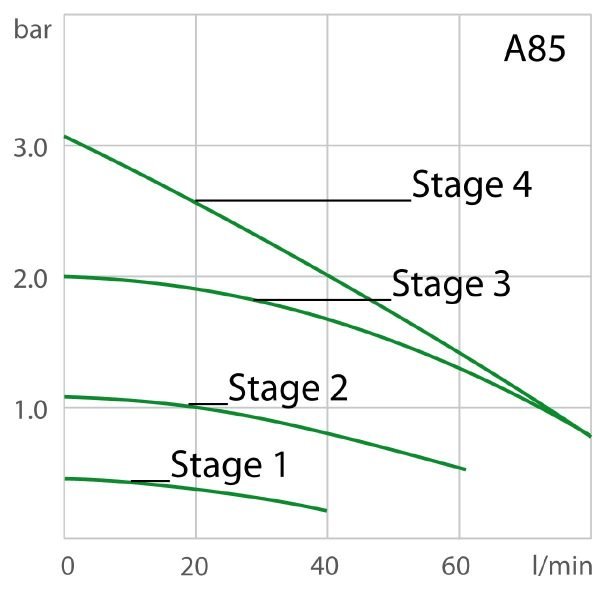

| Pump capacity flow rate | 35 … 80 l/min | ||||||||||||||||||||||||||||||||||||
| Pump capacity flow pressure | 7 … 43.5 psi | ||||||||||||||||||||||||||||||||||||
| Dimensions (W × L × H) |
24 x 42.5 x 49.2 in. | ||||||||||||||||||||||||||||||||||||
Product Features
- Rapid heating and cooling
- For highly precise, external temperature applications
- Wide working temperature ranges without changing fluids
- Highest performance with small footprint
- Space-saving design optimizes space utilization in your lab
- Cooling capacity up to 2.8 kW
- Pump pressure up to 3.2 bar, max. flow rate 80 l/min
- 5,7” industrial color TFT touch screen
- SD-Card slot
- Connections for USB, Ethernet, RS232, and Alarm output
- Modbus
- Connections for alarm-output, Pt100 external sensor and standby-input
- Ports for USB, Ethernet, RS232, Modbus
- Heating capacity up to 15 kW
