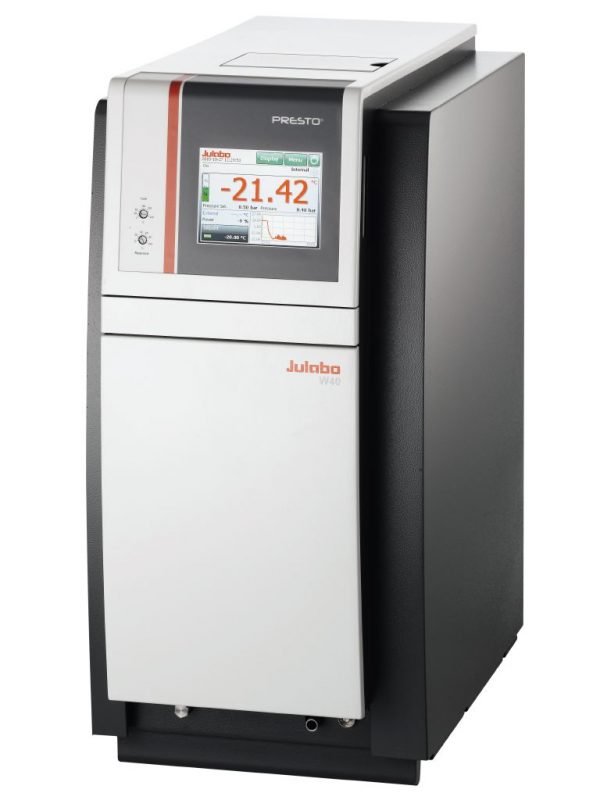

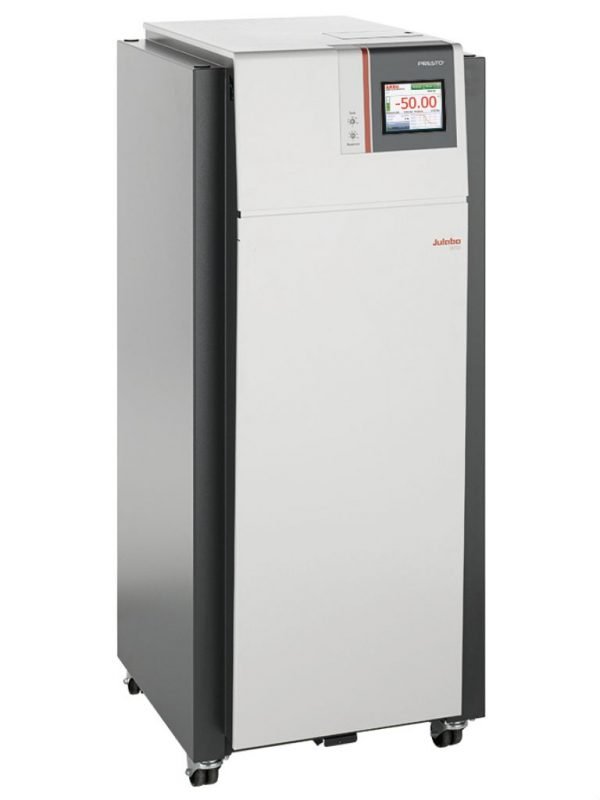

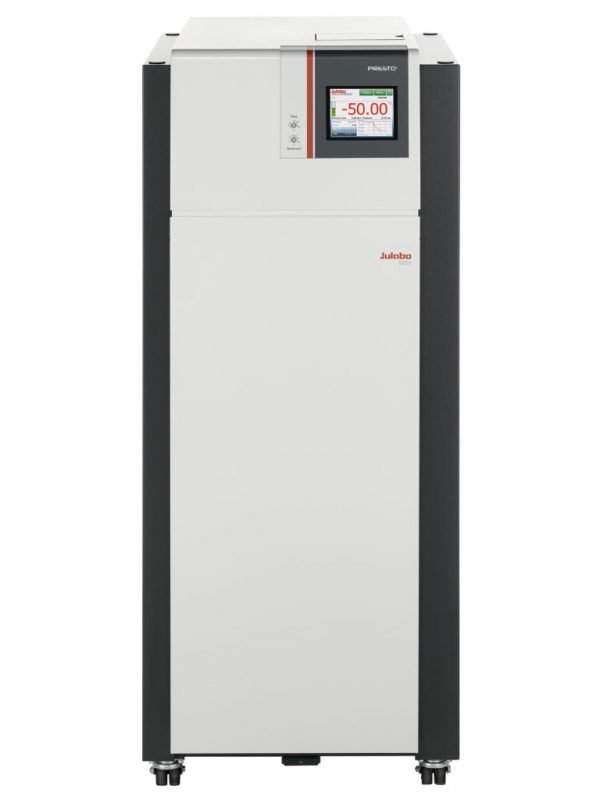

PRESTO W50t Process system SKU: 6720-00215
Description
Performance data depends on the mains voltage in the country of use.
Please select:
Country of use | Mains voltage | Plug | JULABO voltage version code
| Order No. | see refrigerant options | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working temperature range | -50 … +250 °C | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Temperature stability | ±0.05 … ±0.1 °C | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Heating capacity | 12 kW | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

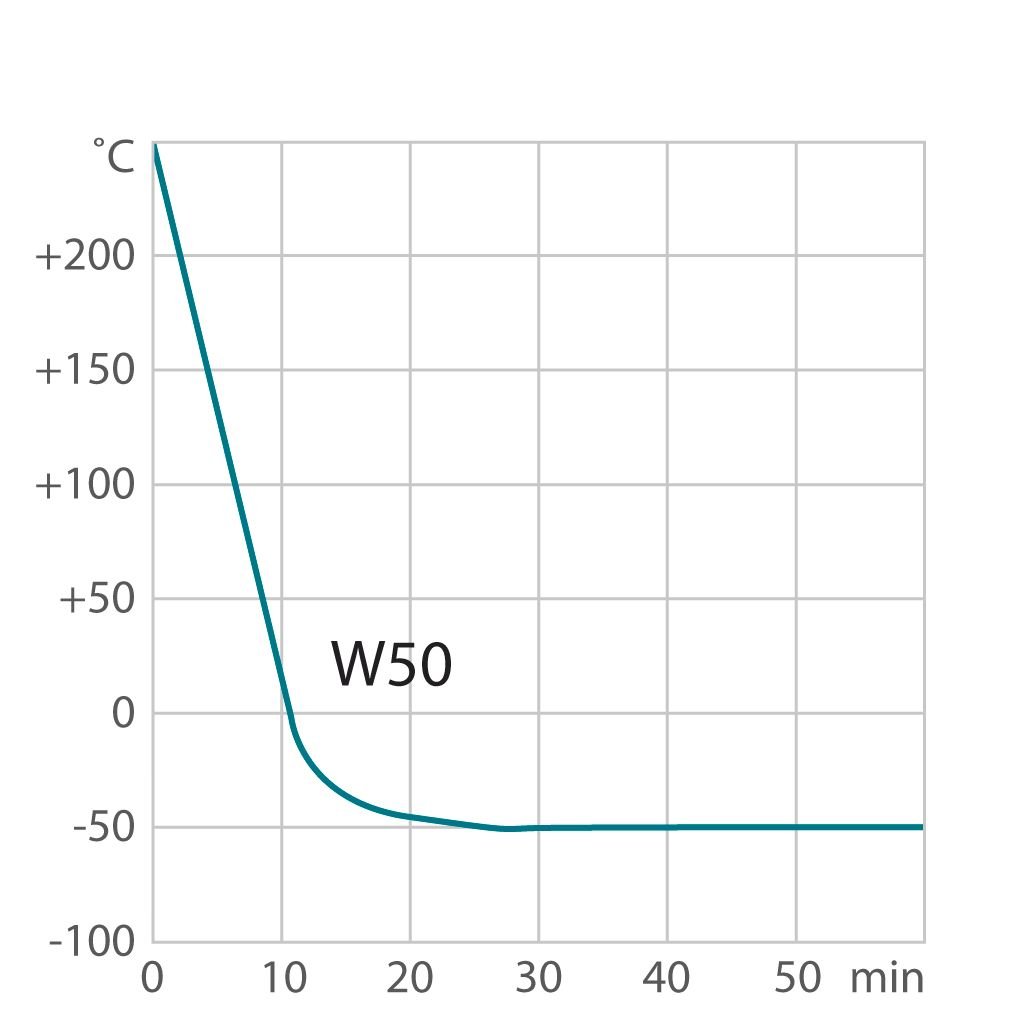

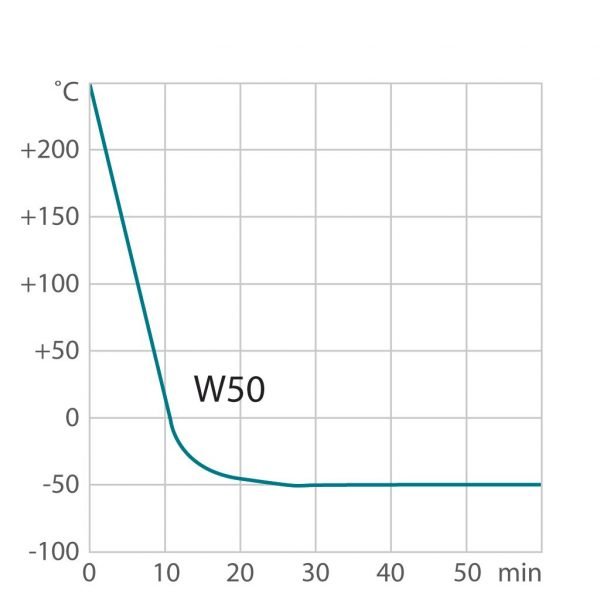

Cooling capacity
* Performance specifications measured in accordance with DIN12876. Cooling capacities up to 20 °C measured with ethanol; over 20 °C with thermal oil unless otherwise specified. Performance specifications apply at an ambient temperature of 20 °C. Performance values may differ with other bath fluids.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

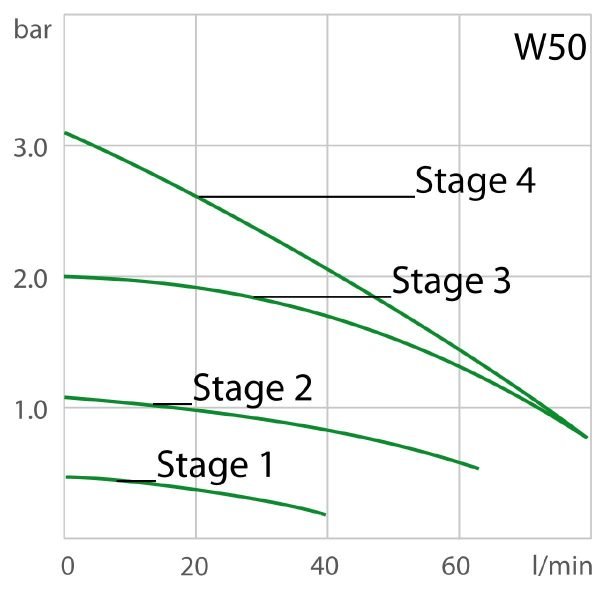

| Pump capacity flow rate | 35 … 76 l/min | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pump capacity flow pressure | 7 … 46.4 psi | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions (W × L × H) |
20.9 x 26.2 x 49.6 in. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Features
- For highly precise, external temperature applications
- Rapid heating and cooling
- Wide working temperature ranges without changing fluids
- Highest performance with small footprint
- Space-saving design optimizes space utilization in your lab
- Cooling capacity up to 7.5 kW
- Pump pressure up to 3.2 bar, max. flow rate 76 l/min
- Temperature stability ±0.05 °C … ±0.1 °C
- 5,7” industrial color TFT touch screen
- Connections for USB, Ethernet, RS232, and Alarm output
- Modbus
- SD-Card slot
- Analog connections, RS485, Profibus DP (accessory)
- Second external Pt100 sensor connection (accessory)
