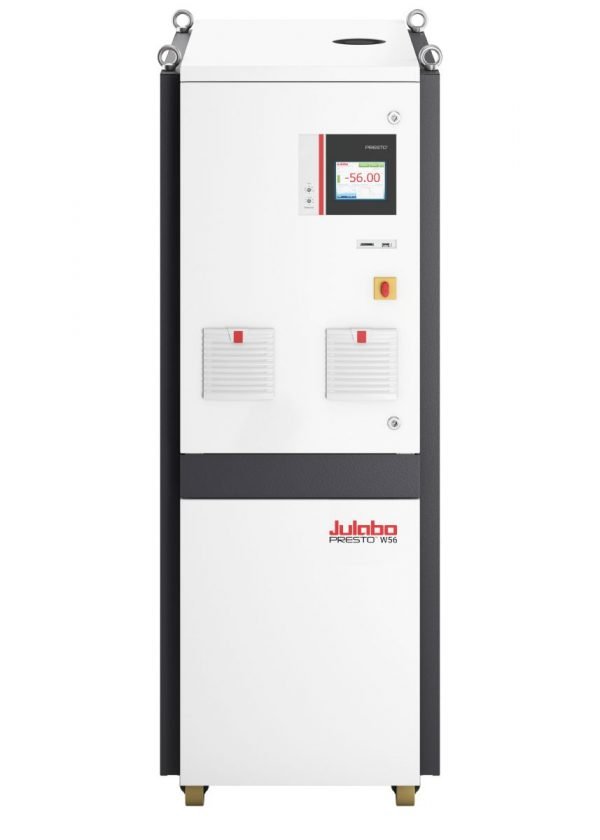

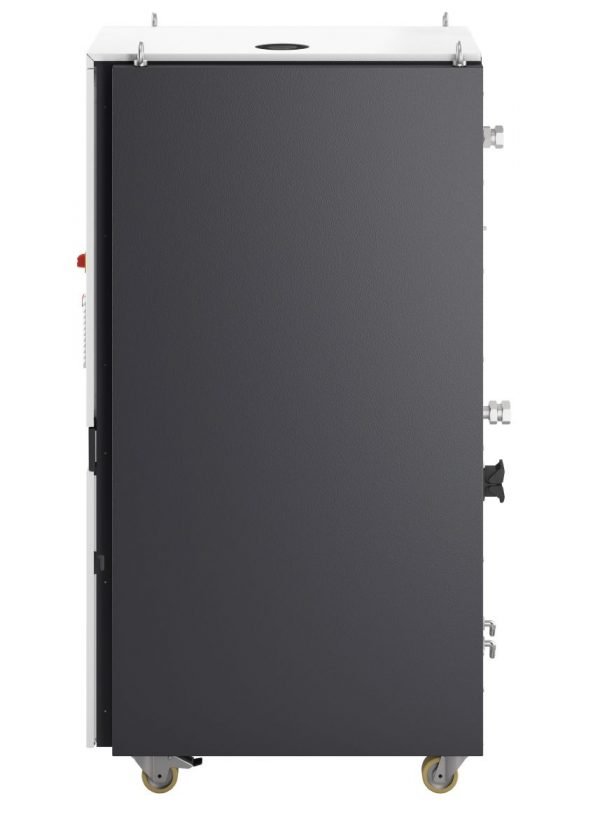

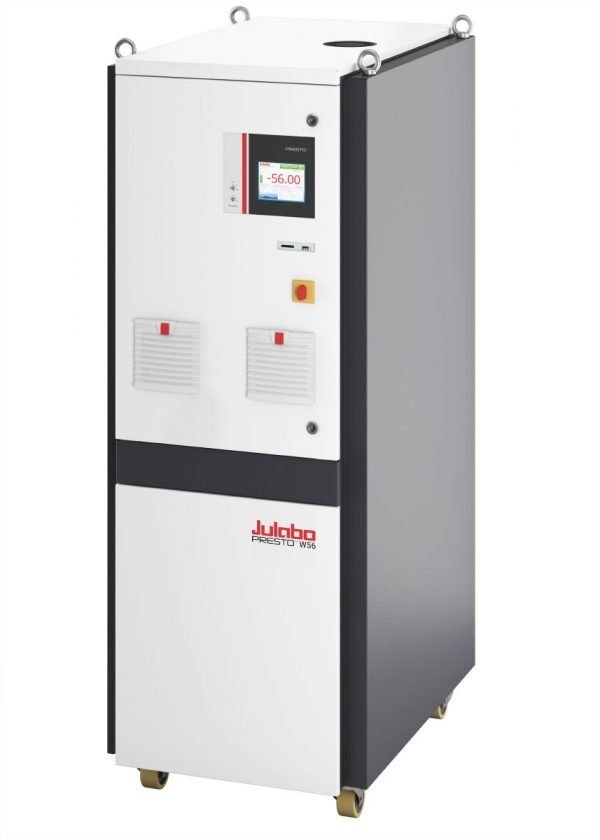

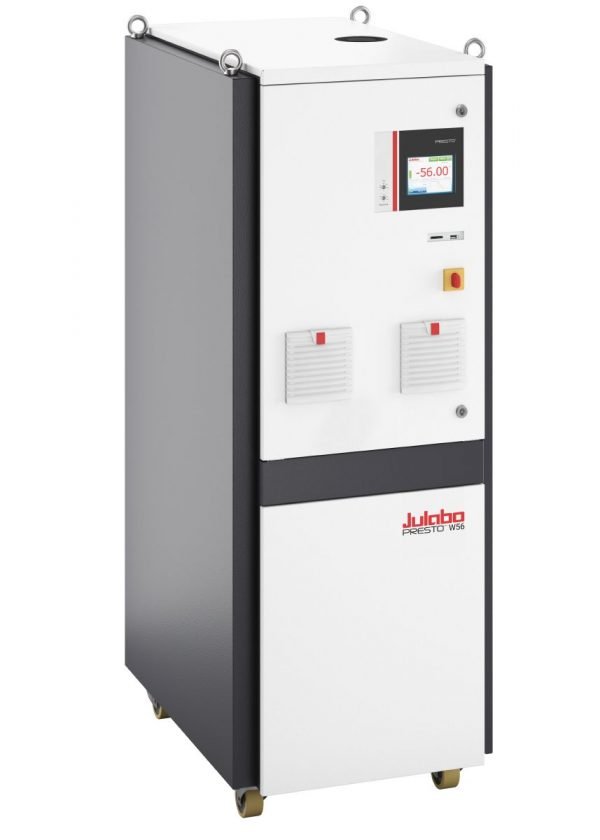

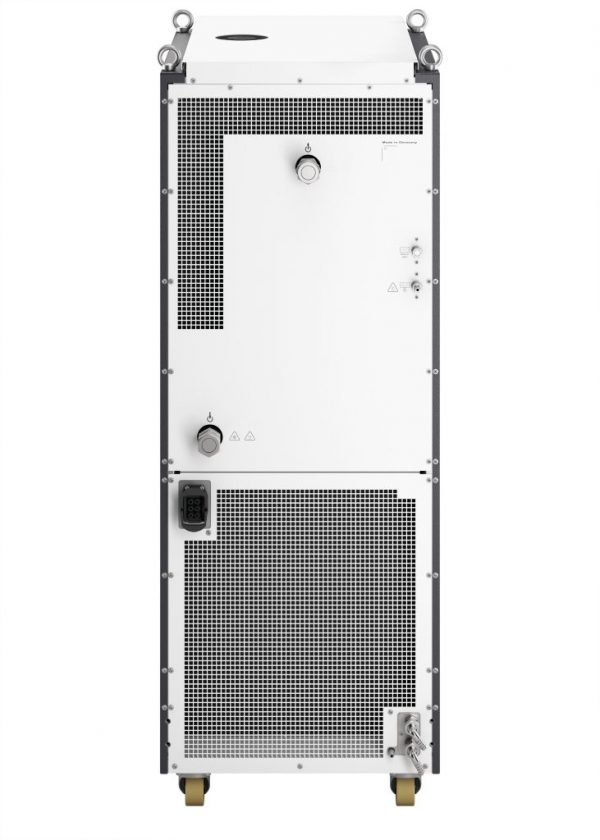

PRESTO W56 Process system SKU: 6720-00217
Description
Water-glycol up to +150 °C
The PRESTO W56 contains a technical innovation: Connection of an expansion kit ( accessorie) allows pressurized temperature control with water-glycol up to a working temperature of +150 °C.
Performance data depends on the mains voltage in the country of use.
Please select:
Country of use | Mains voltage | Plug | JULABO voltage version code
| Order No. | 9421562.17 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working temperature range | -56 … +250 °C | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Temperature stability | ±0.05 … ±0.1 °C | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

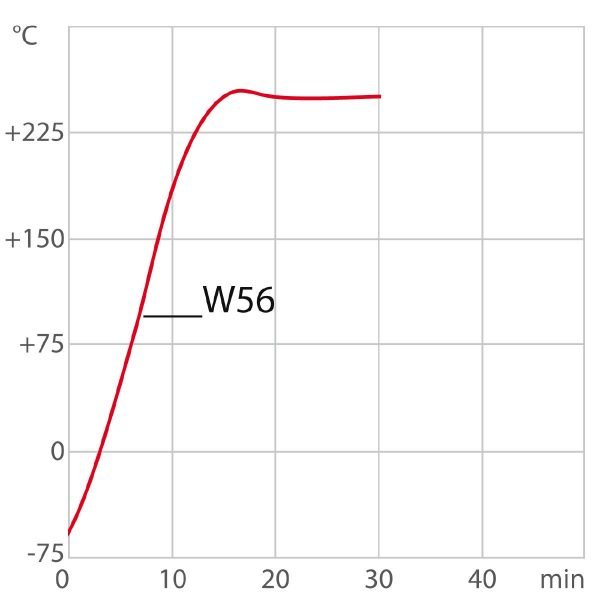

| Heating capacity | 27 kW | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cooling capacity
* Performance specifications measured in accordance with DIN12876. Cooling capacities up to 20 °C measured with ethanol; over 20 °C with thermal oil unless otherwise specified. Performance specifications apply at an ambient temperature of 20 °C. Performance values may differ with other bath fluids.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pump capacity flow rate | 35 … 80 l/min | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pump capacity flow pressure | 7 … 46.4 psi | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions (W × L × H) |
23.6 x 37 x 64.6 in. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Features
- ATC function for simple correction of temperature variations
- Analog connections, RS485, Profibus DP (accessory)
- Ports for USB, Ethernet, RS232, Modbus
- Integrated 5.7” industrial color touchscreen displays all essential information and enables simple fingertip control
- Extensive warning, protection, and monitoring functions with detailed self-explanatory messages
