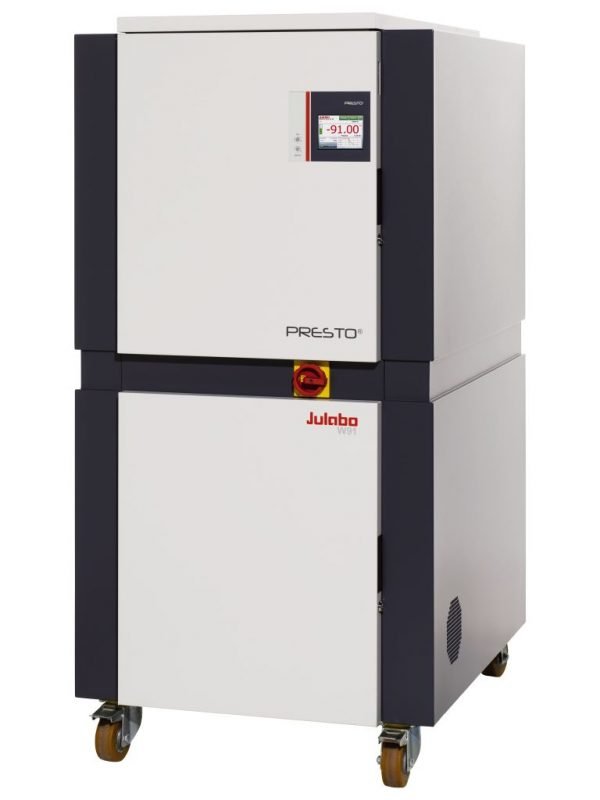

PRESTO W91 Process system 6720-00226
Description
Performance data depends on the mains voltage in the country of use.
Please select:
Country of use | Mains voltage | Plug | JULABO voltage version code
| Order No. | 9421912.17 | ||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working temperature range | -91 … +250 °C | ||||||||||||||||||||||||||||||||||
| Temperature stability | ±0.05 … ±0.2 °C | ||||||||||||||||||||||||||||||||||
| Heating capacity | 18 kW | ||||||||||||||||||||||||||||||||||

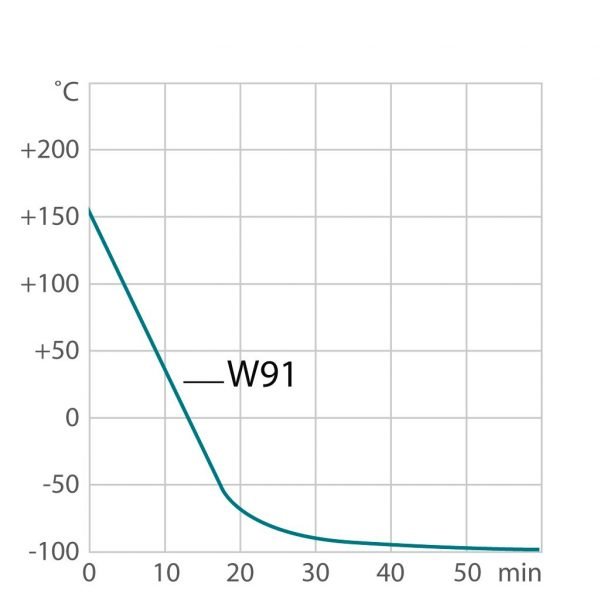

Cooling capacity
* Performance specifications measured in accordance with DIN12876. Cooling capacities up to 20 °C measured with ethanol; over 20 °C with thermal oil unless otherwise specified. Performance specifications apply at an ambient temperature of 20 °C. Performance values may differ with other bath fluids.
|
|||||||||||||||||||||||||||||||||||

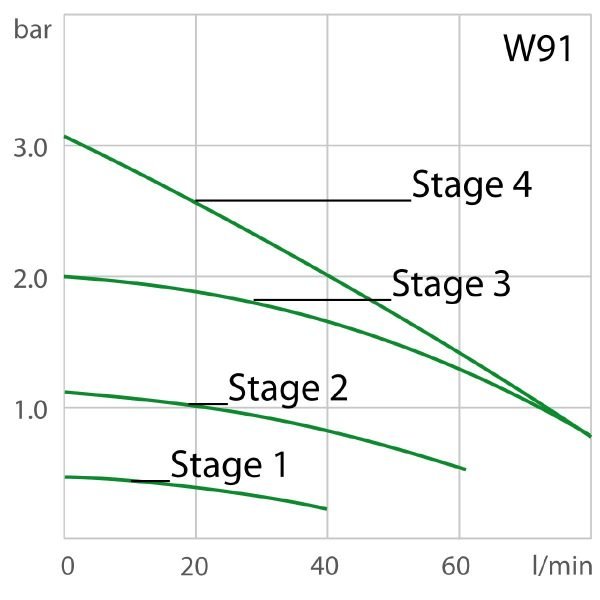

| Pump capacity flow rate | 26 … 80 l/min | ||||||||||||||||||||||||||||||||||
| Pump capacity flow pressure | 7.3 … 43.5 psi | ||||||||||||||||||||||||||||||||||
| Dimensions (W × L × H) |
37.4 x 50 x 74.8 in. | ||||||||||||||||||||||||||||||||||
Product Features
- Rapid heating and cooling
- Wide working temperature ranges using one bath fluid
- Designed to quickly compensate exothermic and endothermic reactions
- Unsurpassed power and efficiency
- Heating capacity up to 36 kW
- Cooling capacity up to 11 kW
- Pump pressure up to 5.5 bar, max. flow rate 80 l/min
- Temperature stability ±0.05 … ±0.2°C
- 5,7” industrial color TFT touch screen
- Connections for USB, Ethernet, RS232, and Alarm output
- Modbus
- Ambient temperature range +5 °C to +40 °C
- Space optimized design creates more room directly next to the units
- Extensive warning, protection, and monitoring functions with detailed self-explanatory messages
- ICC cascade control for extraordinary precision, temperature stability ±0.05 °C … ±0.2 °C
- Electronic level indication
- Powerful circulating pumps, select a stage or a specific pressure
- SD-Card slot
- Analog connections, RS485, Profibus DP (accessory)
- Intelligent warning and safety functions
