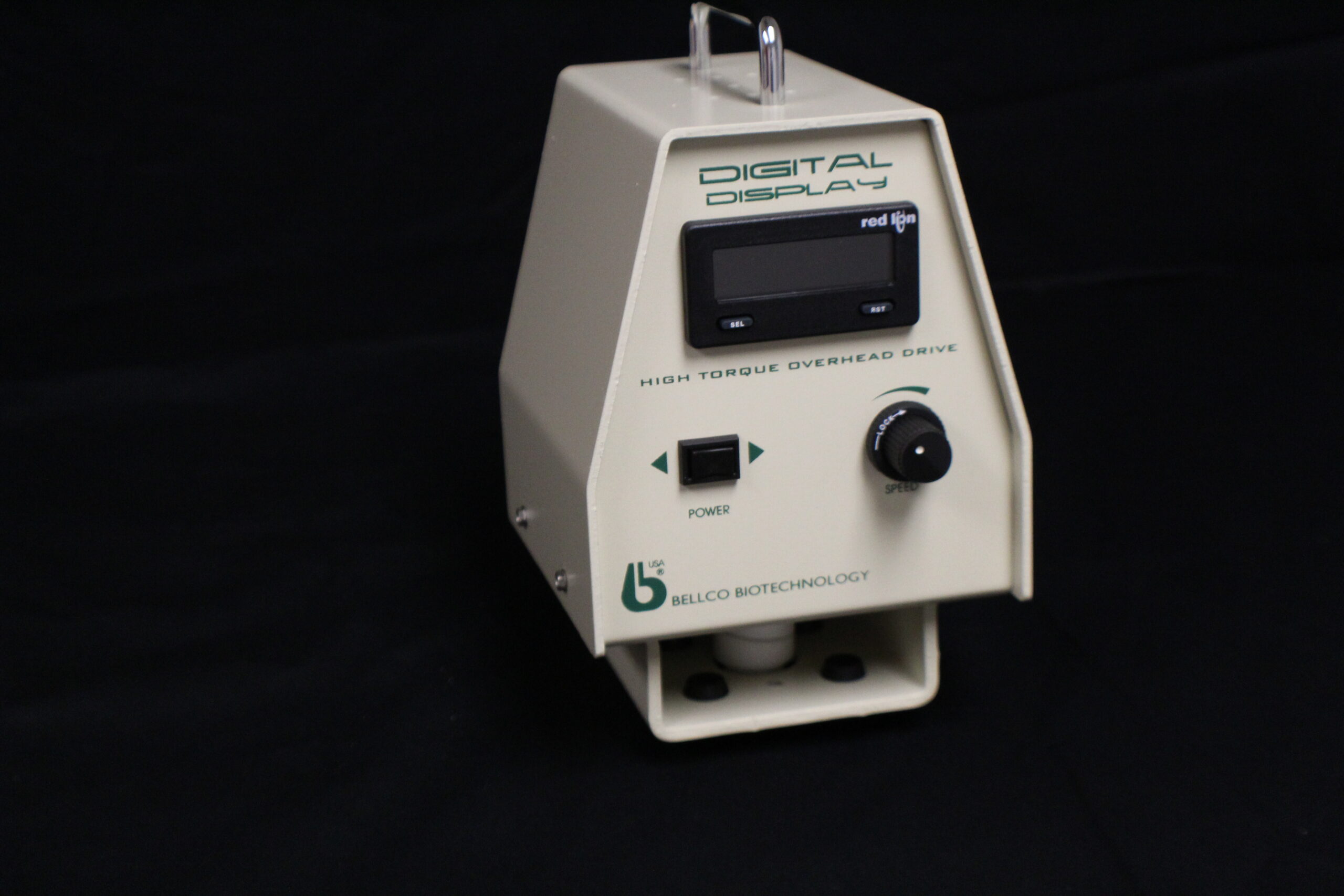

Hi-Torq Digital Over Head Drive Complete 230v SKU: 7774-30230
The Bellco High Torque Digital Overhead Drive is a versatile direct-drive agitator for cell culture and most aseptic mixing applications. The Overhead Drives were developed to eliminate the problem of magnetic agitator decoupling often observed in large volume mixing and the stirring of solutions with a viscosity greater than water. The High Torque model is ideal for the agitation of medium to viscous liquids. The Overhead Drives feature brushless, maintenance-free DC motors with drive assemblies designed for quiet operation. Units are powered by a 24VDC power supply (included) and are CE compliant.
- Speed Range: 5 – 150 rpm +/- 2%
- Electrical: 230V/24V Fused At 2 Amp
- Brushless Motor For Low Maintenance
- Reverse Direction Switch
- Easy Mounting Bracket With ‘Peg & Grommet’ Design
- Dimensions: 9.5″ X 6″ X 7.5″ (24 X 15 X 19cm) Includes Handle
- Hi-Torque Models: 31 In-Lb Torque, 50w
- Environmental Conditions, (Operating):indoor use, pollution degree 2, 4° to 50° C relative humidity 0-90% non-condensing.
- Environmental Conditions, (Non-operating): -10° to 60° C, relative humidity 95% maximum.
|Dimensions||27 × 27 × 27 in|
