Low Profile Thermowell Assembly 6L For Vertical Over Head Drive Vessels SKU:1964-06405

$549.37

SKU: 1964-06405 Categories: ,

Description

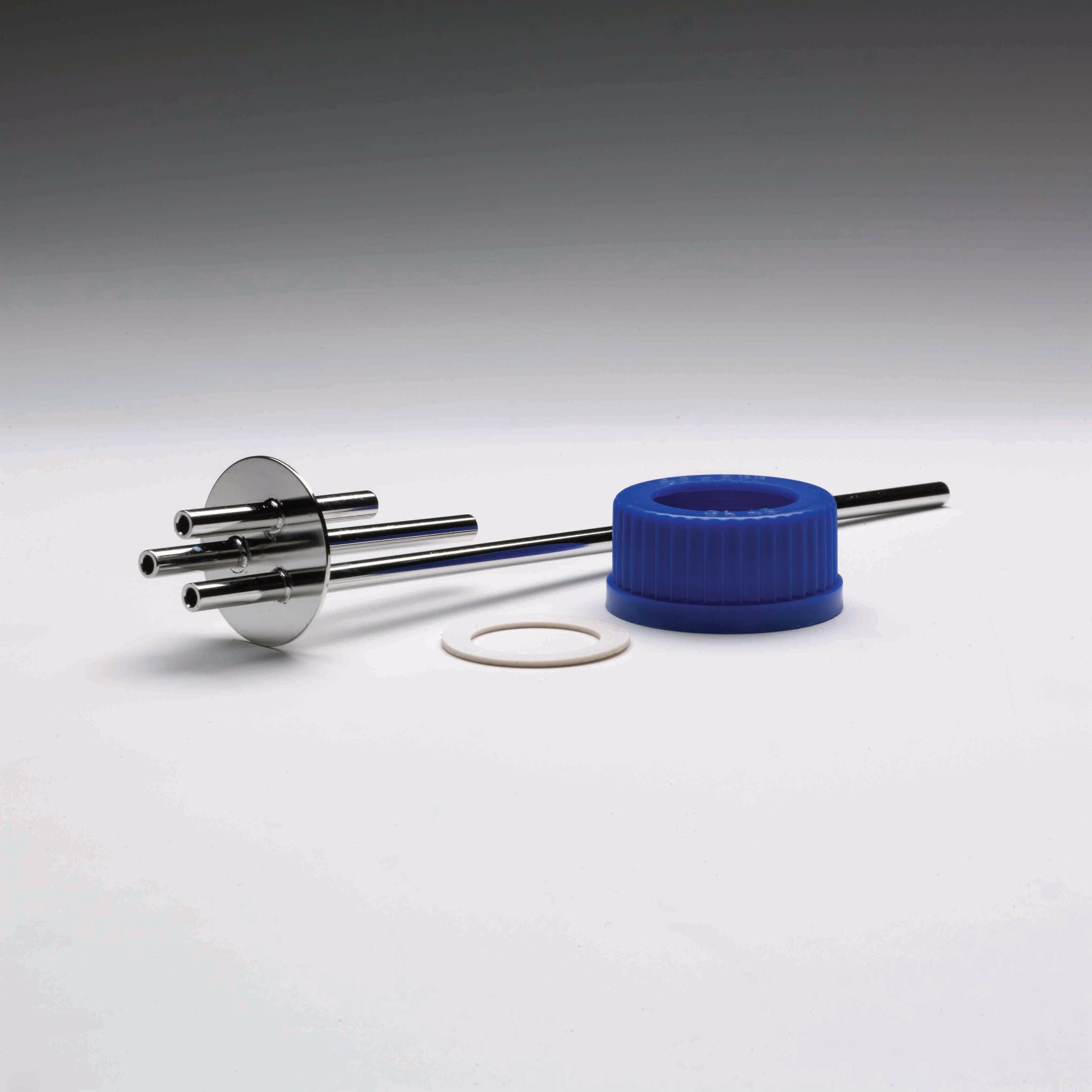

Thermowell Assemblies are used to hold inside one tube the RTD temperature sensor that monitors the temperature within the vessel in conjunction with a temperature controller. There are also tubes for addition of media and vent tube.

Specification:

  • 45mm Thermowell Assembly For L/P 6l Vessel
  • Seam Welded – Electropolish Finish
  • 316l Stainless Steel
  • Supply With S/Cap (A523-599) & White Silicone Liner (A523-600)
  • 1- Thermowell Tube: 5/16″Od X .242″ID X 1.0″ Above X10 9/32″ Insertion
  • 1- Siphon Tube: 1/4″Od X 5/32″ Id X 1.0″ Above X 10 9/32″ Insertion
  • 1- Vent Tube: 1/4″Od X 5/32″ Id X 1.0″

Additional information

Weight 500 oz
Dimensions 27 × 27 × 27 in
