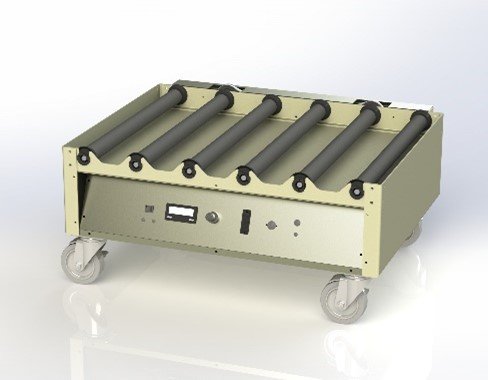

Modular Cell Production Roller Apparatus 5 Position Base Only 230v SKU: 7630-75220

$2,984.91

Description

The Bellco Cell Production Roller Apparatus has been designed for production of animal cells, viruses and cell products.  Modular units are available from 5 to 45 bottle positions and allow easy expansion with modular add-on decks.  Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. Rollers have a key design to eliminate slipping and are easily removable for servicing of bearings.  Rollers are formulated from a chemical-resistant non-slip EDPM. All units feature a solid state control with heavy-duty DC motor and analog tachometer.  Non-modular production models feature rubber bumpers, handles and a slotted rear guard.

Specifications:

  • Dimensions: 14″H X 30″W X 24″D (37H X 76W X 63 D (cm).
  • Bottle Speed: 0.1 – 4.0 Rpm Standard Or 0.085-1.7 Rpm When Specified On The Order,
  • Drive And Control System: Solid-State Electronic Control With Precision Full-Range Tachometer.
  • Electrical Rating: 230 +/-10 Vac @ 50/60 Hz Line Voltage, 0.5 Amp @ 230v 50 Hz Power Consumption.
  • Roller Shaft Construction: Non-Transferring Chemical-Resistant Rubber Rollers With Key-Shape.
  • Clearance Between Decks For Bottle Placement: 134 Mm,
  • Construction Material: Aluminum Enamel Finish
  • Usable Roller Length: 51 cm
  • Environmental Conditions (Operating): Indoor Use, Pollution Degree 2, 4° To 50° C, Relative Humidity 0-90%, Non-Condensing.
  • Environmental Conditions (Non-Operating): -10° To 60° C, Relative Humidity 95% Maximum.

Additional information

Weight 1232 oz
Dimensions 25 × 30 × 15 in
