STD Over Head Drive Adapter 100mm


SKU: 7764-70000 Categories: ,

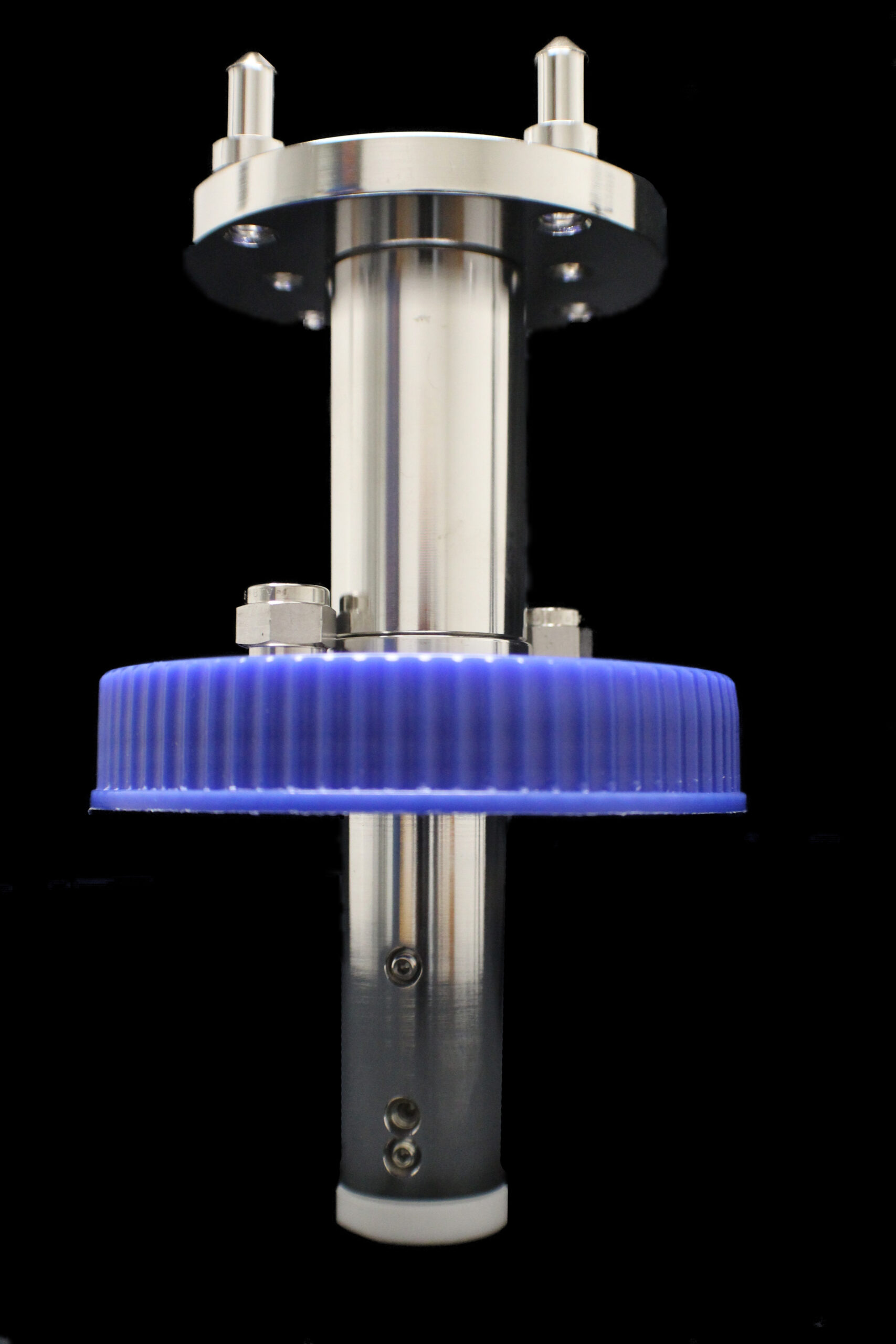

The Bellco 100 mm Overhead Drive Cap Assembly is manufactured from 316L SST with dual bearings and seals. A dust shield for paddle assemblies (1/4” shaft) is included.  Cap assembly features two 1/4” NPT female ports for addition of optional fittings.  Includes two 1/4” NPT male port plugs standard.  The cap assembly utilizes the unique Bellco 100 mm cap seal.

The Bellco 100 mm Overhead Drive Cap Assembly is an integral part of many Bellco Overhead Drive Systems, and is designed to be used with a Bellco Overhead Drive, glass vessel with 100 mm diameter center neck and impeller. Consult the instruction manuals provided with your Overhead Drive for set-up and system operation.


  • 316 L Stainless Steel Construction
  • 100mm Polypropylene Screw Cap
  • Silicone O-Ring
  • Two 1/4″ Plugged Ports
  • Dimensions: 4 ¼” L X 4 ¼” W X 5 ½” H (Excluding Dust Shield)
  • Weight: 2 Lbs. (0.9 Kg)
