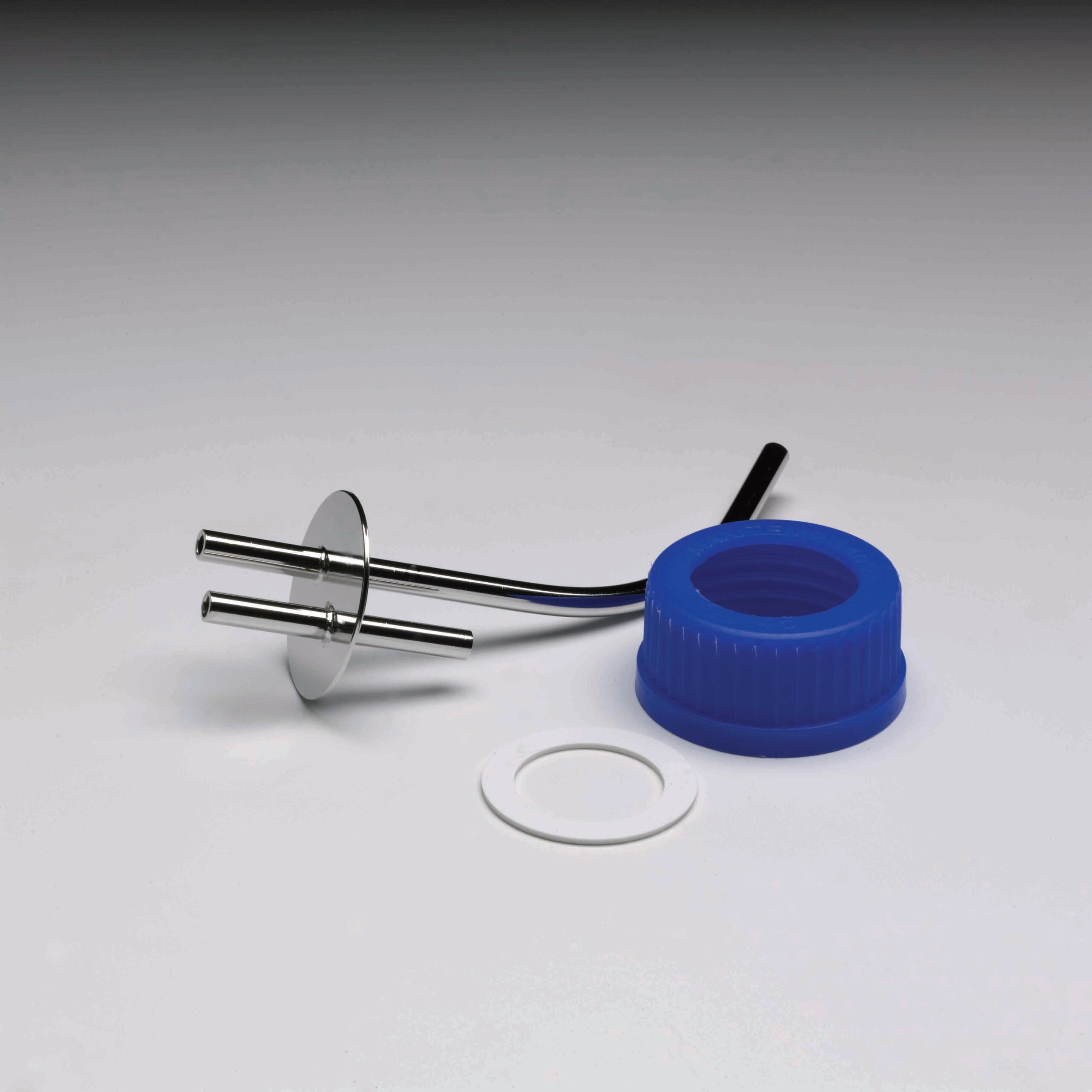

Thermowell Assembly 1L SKU: 1965-32001R

$272.92

Description

Thermowell Assemblies are used to hold inside one tube the RTD temperature sensor that monitors the temperature within the vessel in conjunction with a temperature controller. There are also tubes for addition of media and vent tube.

Specifications:

  • Thermowell Assemblies For 1965 And 1967-Style Angled Sidearm Flasks, 3-Port
  • 5/16″ OD Thermowell Tube,1/4″ Siphon And Vent Tubes
  • Includes 45mm Polypropylene Cap And Silicone Gasket
  • Seam Welded And Electropolished
  • 316 L Stainless Steel 32 Ra Finish Or Better
  • Comes With Short Paddle: 2 3/4″ Wide X 1 3/4″ Tall (A523-731)
  • Longest Tube Length:4″

Additional information

Weight 800 oz
Dimensions 27 × 27 × 27 in
