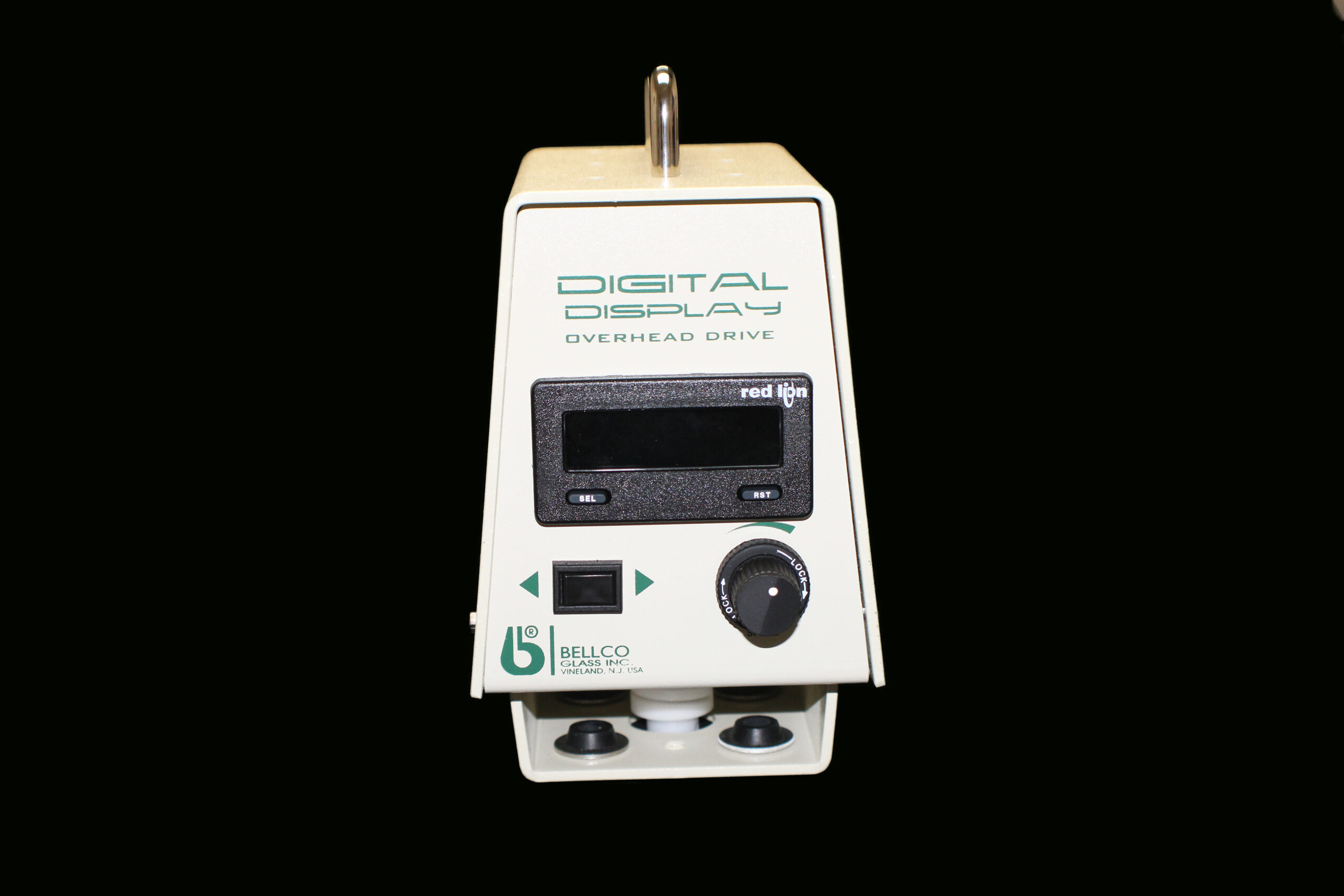

Digital Over Head Drive Complete SKU:7774-10115

Description

The Bellco Digital Overhead Drive is a versatile direct-drive agitator for cell culture and most aseptic mixing applications.  The Overhead Drives were developed to eliminate the problem of magnetic agitator decoupling often observed in large volume mixing and the stirring of solutions with a viscosity greater than water. The Overhead Drives feature brushless, maintenance-free DC motors with drive assemblies designed for quiet operation. Units are powered by a 24VDC power supply (included) and are CE compliant.

Specifications:

• Speed Range: 5 – 150 Rpm +/- 2%
• Electrical: 115V/24V Fused At 1 Amp
• Brushless Motor For Low Maintenance
• Reverse Direction Switch
• Easy Mounting Bracket With ‘Peg & Grommet’ Design
• Dimensions: 4.5″ X 5.5″ X 8″ (11 X 14 X 20cm) Includes Handle
• Standard Models: 19 In-Lb Torque, 30w
• Environmental Conditions, (Operating):indoor use, pollution degree 2, 4° to 50° C relative humidity 0-90% non-condensing.
• Environmental Conditions, (Non-operating):  -10° to 60° C, relative humidity 95% maximum.
